High Efficient Fast Drying Speed GMP Standard Vacuum Conical Dryer

Ask Lasest Price
Brand Name :	WELLDONE TECHNOLOGY
Model Number :	ZXHG-(50-6000)
Certification :	CE, ISO 9001: 2008, ISO 10004
Price :	10,000 USD -150,000 USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10Sets/Months
Delivery Time :	30-60Working Days

Add to Cart

Product Details
Company Profile

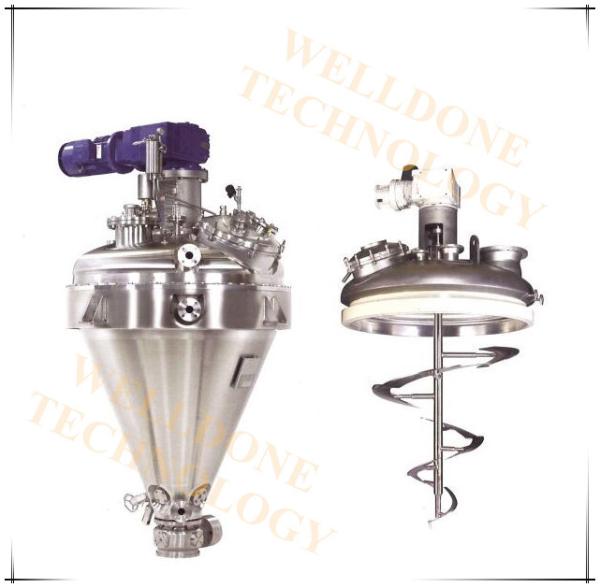

High Efficient Fast Drying Speed GMP Standard Vacuum Conical Dryer

Principle of ZXHG Conical Vacuum Dryer / Cone Vacuum Dryer / Vacuum Ribbon Dryer (GMP Standard, Pharma Vacuum Dryer)

ZXHG is a closed conical vacuum heat contacting dryer, there has an
agitator inside to stir the raw material. ZXHG could meet GMP
standard, it is widely used for pharmaceutical, biological,
chemical and food industries. It is suitable for drying and
concentrating liquid, filter cake, powder and granule shape
material.
The Helical Dryer series ZXHG was designed to meet the requirements
of multipurpose production, as specified by a study group that
included major European pharmaceutical manufacturers. The dryer
incorporates an optimized mixing assembly, which features a
mechanical seal (without product contact); rugged bearings; a small
surface area (for reduced product hold-up); a reduced gap to the
vessel wall (for enhanced mixing performance); and a 30% reduction
in shaft length (so there is no bending moment). An integrated
containment filter is included for processing active agents. The
overall height of the ZXHG has been reduced due to a patented bowl
design. The dryer is available as a mobile unit, with a usable
volume of 15–30 L, or a stationary version, with a usable volume of
100–4,000 L. Particle sizes up to 5 mm can be handled. Hall 5.0,
Stand D13–E16

Features of ZXHG Conical Vacuum Dryer / Cone Vacuum Dryer / Vacuum Ribbon Dryer (GMP Standard, Pharma Vacuum Dryer)

1. Mixing and drying complete in one machine, improve productive
efficiency.

2. ZXHG adopt jacket for heating, reduce energy consumption.

3. ZXHG adopt vacuum drying, could keep heat and mass transfer,
especially suit for thermal sensitive material.

4. The structure is simple, easy to clean, convenient in
discharging, which could meet GMP standard.

5. Different agitator form are available for choice

6. The dryer is also available for cooling, reacting or
sterilization.

Technical Parameters of High Efficient & Fast Drying Speed GMP Standard Vacuum Conical Dryer

Viedo of Transport

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design

Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing

Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
